Wood Specifications

  • Common Names(s): Western Red Cedar
  • Scientific Name: Thuja plicata
  • Distribution: Pacific Northwest United States/Canada
  • Tree Size: 65-200 ft (50-60 m) tall, 7-13 ft (2-4 m) trunk diameter
  • Average Dried Weight: 23 lbs/ft3 (370 kg/m3)
  • Specific Gravity: .31, .37
  • Janka Hardness: 350 lbf (1,560 N)
  • Modulus of Rupture: 7,500 lbf/in2 (51.7 MPa)
  • Elastic Modulus: 1,110,000 lbf/in2 (7.66 GPa)
  • Crushing Strength: 4,560 lbf/in2 (31.4 MPa)
  • Shrinkage: Radial: 2.4%, Tangential: 5.0%, Volumetric: 6.8%, T/R Ratio: 2.1

Sanded

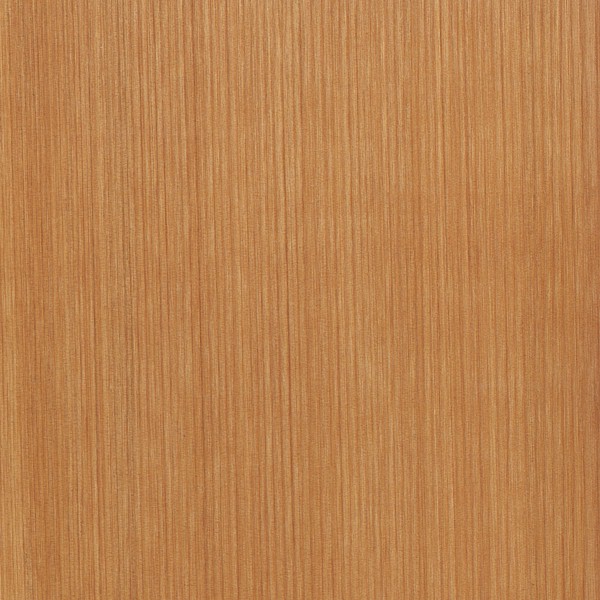

Sealed

Heartwood reddish to pinkish brown, often with random streaks and bands of darker red/brown areas. Narrow sapwood is pale yellowish white, and isn’t always sharply demarcated from the heartwood.
Has a straight grain and a medium to coarse texture.
Resin canals absent; earlywood to latewood transition usually abrupt (or gradual if growth rings are widely spaced), color contrast medium-high; tracheid diameter medium to medium-large.
Western Red Cedar has been rated as durable to very durable in regard to decay resistance, though it has a mixed resistance to insect attack.
Easy to work with both hand or machine tools, though it dents and scratches very easily due to its softness, and can sand unevenly due to the difference in density between the earlywood and latewood zones. Glues and finishes well. Iron-based fasteners can stain and discolor the wood, especially in the presence of moisture.
Western Red Cedar has a strong, aromatic scent when being worked.
Although severe reactions are quite uncommon, Western Red Cedar has been reported as a sensitizer. Usually most common reactions simply include eye, skin, and respiratory irritation, as well as asthma-like symptoms and nervous system effects. See the articles Wood Allergies and Toxicity and Wood Dust Safety for more information.
Should be moderately inexpensive for construction-grade lumber, though higher grades of clear, straight-grained, quartersawn lumber can be more expensive.
This wood species is not listed in the CITES Appendices or on the IUCN Red List of Threatened Species.
Shingles, exterior siding and lumber, boatbuilding, boxes, crates, and musical instruments.
Western Redcedar is a commercially important lumber, used in a number of applications ranging from rough-sawn lumber for use in home construction to clear quartersawn material for classical guitar soundboards
