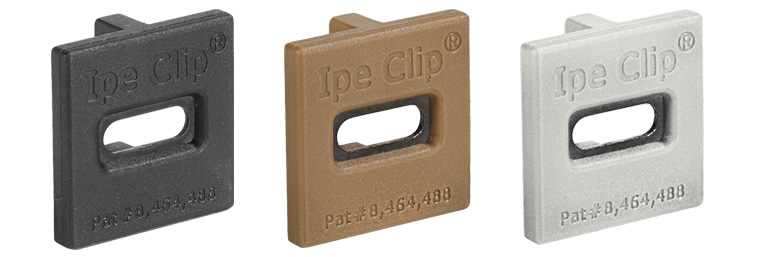

* Hidden Ipe Clip® Kit orders may also be ordered variations of 100 clips or 175 count. Decking screws may also be mix-n- matched for a diverse selection lengths, head color and style.
| Material | Stainless Steel Insert | Available Color |
|---|---|---|

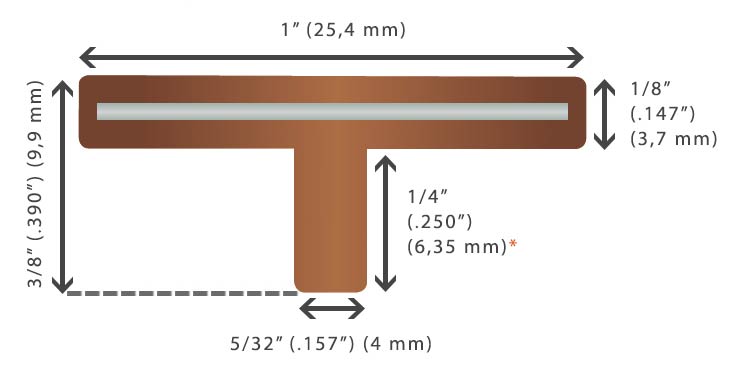

| Polyethylene | .883" x .883" Thickness: .036" (22,4mm x 22,4mm Thickness: ,9mm) |
 |
| Air-Dried Decking | Kiln-Dried Decking | Composite / PVC Decking |
|---|---|---|
In order to be eligible to make a warranty claim, you must complete the registration for warranty here: www.deckwise.com/warranty/register.html

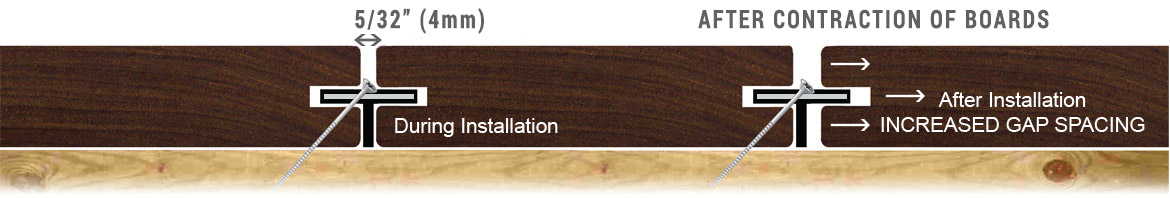

The method of 45 degree screws hold the decking tight to the joist, while allowing one side of the deck board to remain free to contract.

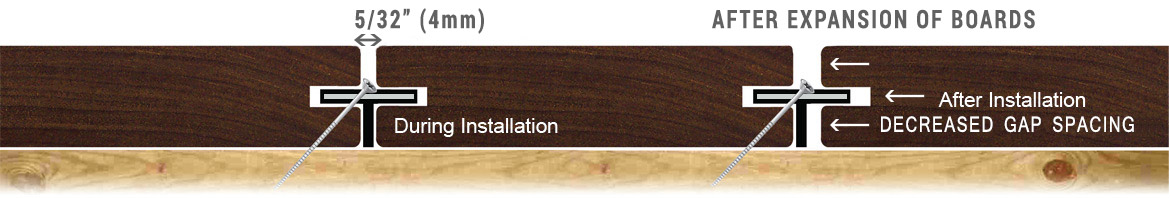

The method of 45 degree screws hold the decking tight to the joist, while allowing one side of the deck board to remain free to expand.

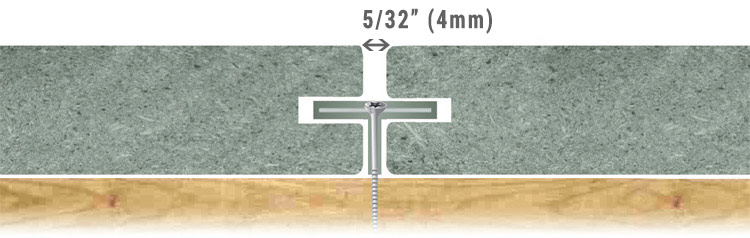

Running screws straight down with composite/PVC decking allows these materials to naturally move on their length.

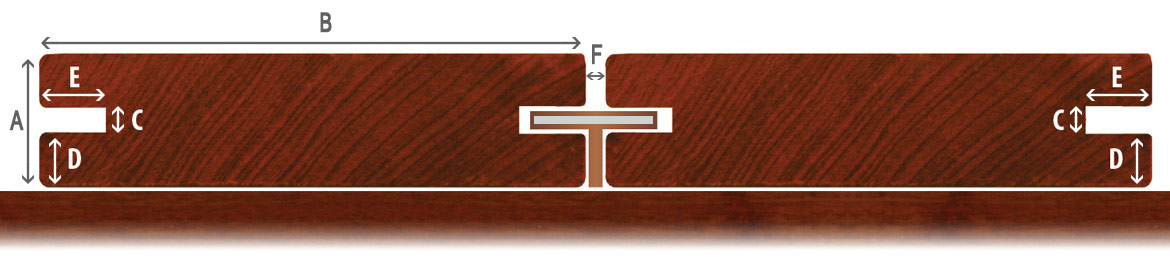

| Board Thickness | Board Width |
|---|---|
| A* = Measurement Of Your Decking | B** = Measurement Of Your Decking |

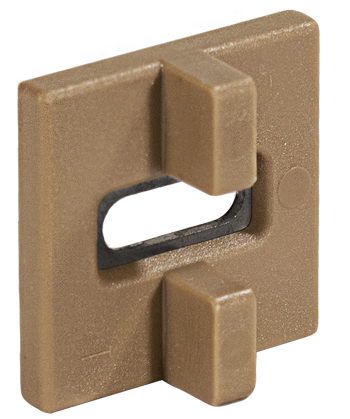

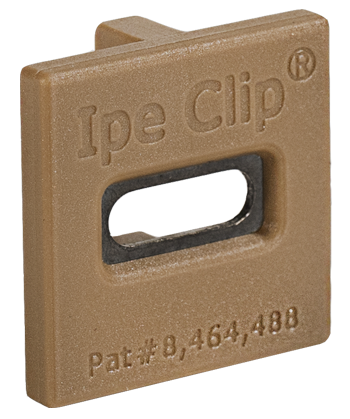

(100 Count) IPE Clip Extreme4 Fastener System - BROWN Square Clips with DeckWise Color Match #8 x 2", 305 Grade Stainless T15 Star Drive
| Thickness of Cut | Cutting Height | Cutting Depth |
|---|---|---|
| C = 5/32" (4mm) | D*** = (A-5/32")/2 | E = 1/2" (13mm) |
| During Installation |
|---|
| F**** = 5/32"(4mm) |
* If using 1-1/2" (38,1mm) or thicker material, you may need to upgrade to a longer screw option than what is typically packaged with the fastening kit.
** For decking 8" (20,32cm) or wider, the (A) dimension should be at least 1-1/2" (38,1mm). Using a wide plank such as this for surface decking will most likely cause cupping issues regardless of how the material is fastened if thicker material is not used.
*** This formula will create a symmetrical profile that allows you to flip and/or rotate the decking to be able to put the best side up.
**** Fastener automatically achieves correct gap spacing when boards are pushed tight during installation.
Ipe Clip® Kit Hidden Fastener kit groupings may be ordered in different counts of 100 and 175 Clips. Likewise, variations of decking screws for color, length and screw style. Each 100 count kit cover 50 sq. ft. and each 175 kit box covers 100 sq. ft.
EXTREME® Ipe Clip® Series - U.S. Patent Numbers 8,464,488 and 8,806,829.
Original, “round”, STANDARD Ipe Clip® - U.S. Patent No. D470,039.
EXTREMEKD® and EXTREME4® Licensed under U.S. Patent Nos. 7,874,113 and 8,161,702 Patent.
