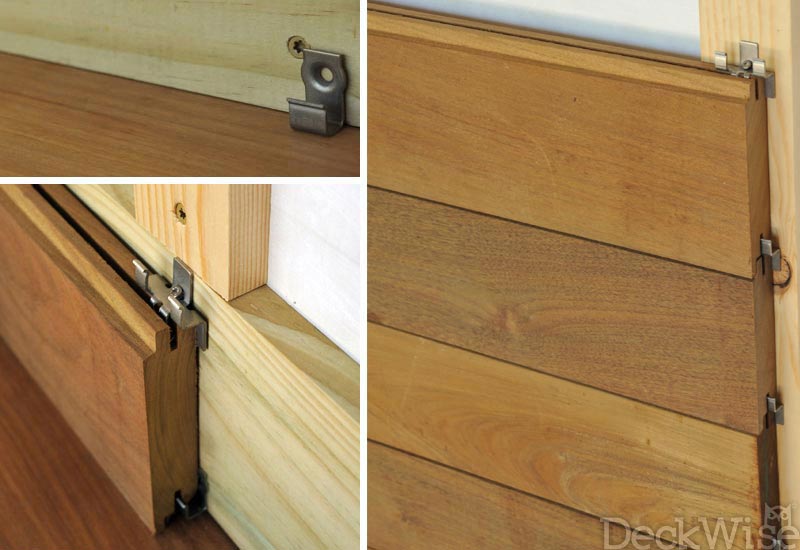

Crafted from solid 304 Grade stainless steel, DeckWise® 5/4 Rainscreen Hidden Siding Fasteners create a sleek and upscale look. The entire system is designed to significantly reduce cupping, twisting, and mold growth due to water penetration. Perfect for both residential and commercial applications, our cladding fastener system works with most hardwood siding profiles.
The Deckwise® Hidden Siding Fastener is extremely versatile and may be used to install rainscreen siding vertically, horizontally, or at an angle. Although this rainscreen fastener has been designed for a 5/4 siding board (actual thickness dimension 15/16"), see our 1x siding board hidden fastener (actual thickness dimension 3/4") which can be used for thinner rainscreen siding material.
For more information on our Rainscreen Hidden Cladding/Siding Fasteners, please be sure to contact us online or to call us directly at 941-896-9851.
Do It Once, Do It Right, Do It Out Of Sight!™
In order to be eligible to make a warranty claim, you must complete the registration for warranty here: www.deckwise.com/warranty/register.html

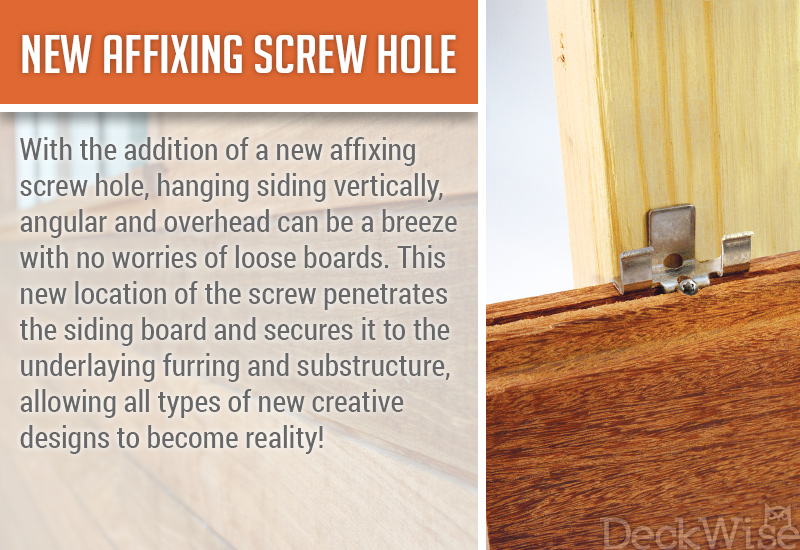

Hanging rainscreen siding vertically, angularly, and overhead is accomplished by using the additional hole in the fastener with no worries of loose boards. This secondary hole allows the fastening screw to penetrate the siding board and secures it to the underlying furring and substructure, allowing all types of new creative designs to become reality! Patented: D663,612 S
Install hardwood siding with no visible fasteners on the surface. See below for available quantities.

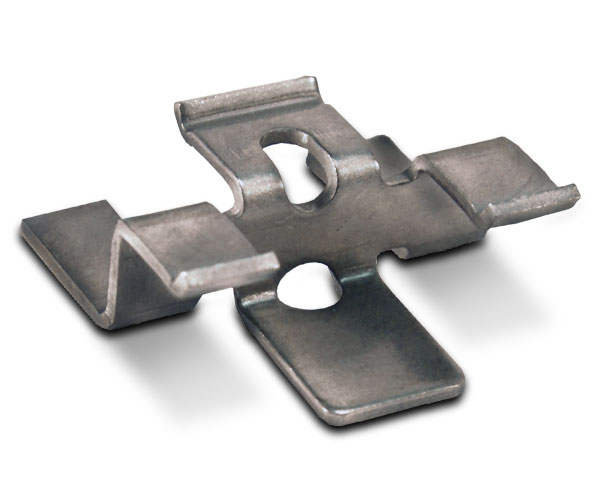

DeckWise® 5/4 Rainscreen Siding Fasteners are easy to install and can help extend the life of your hardwood siding. Our patented design mounts on the edge of the siding boards rather than through the face so your finished project is not only great looking, but also smooth and more structurally stable.
Download Install Guide
Calculate how much siding you will need based on the “Net Finished Dimensions” only. Rainscreen Siding must acclimate to your local climate. Use Ipe Seal to cover the ends of the grain of any freshly cut siding boards.

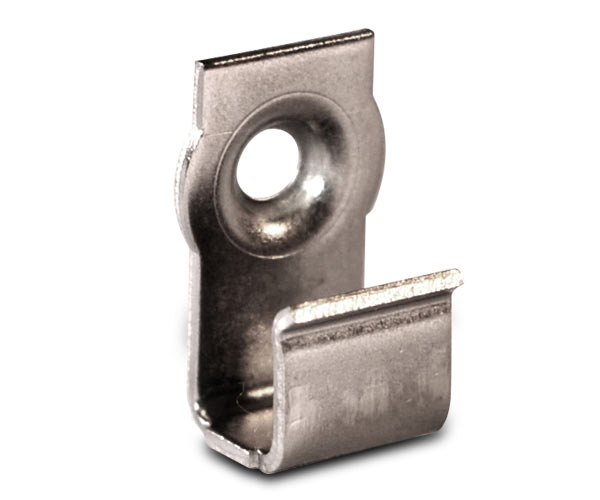

TIP: Where two pieces of siding about against each other, use two fasteners.(Use two starter clips if there is more than one piece of siding installed on the baseboard)

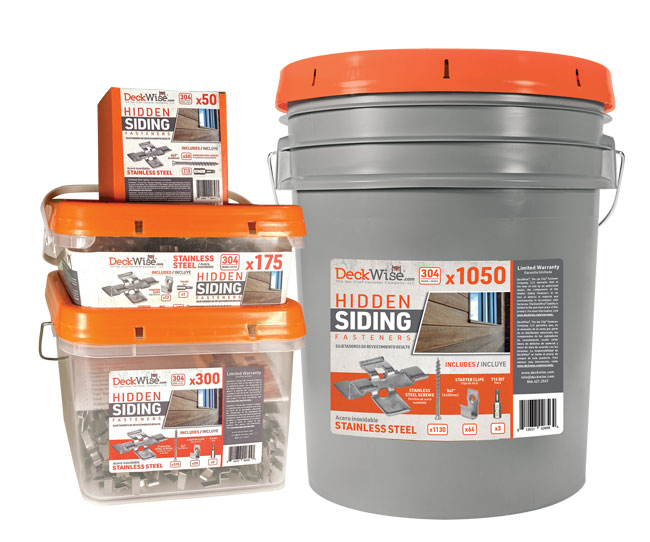

DeckWise® Hidden Siding Fasteners are available as complete kits in the following quanitities:
Discover the difference a smart deck makes with DeckWise®. Contact your local dealer, or call us direct at 941-896-9851 today to get build a smart deck with these professional grade colored stainless decking screws.
Deck Wise Hidden Stainless Steel Siding Fasteners 175 Piece Kit - Clips & Screws & Starter Clips
