* Ipe Clip® Hidden Fastener Kit ordering may have special variations in quantities such as 100 count and 175 count boxes. Order your decking screws in your desired screw length, matching color or style.

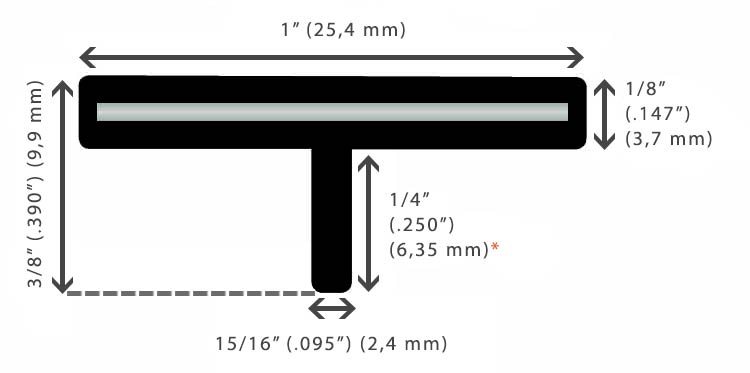

*Short version shown above
Tall version = 3/8" (.375") (9,525 mm)
| Material | Stainless Steel Insert | Available Color |
|---|---|---|
| Polypropylene | .883" x .883" Thickness: .036" (22,4mm x 22,4mm Thickness: ,9mm) |
 |
| Air-Dried Decking | Kiln-Dried Decking | Composite / PVC Decking |
|---|---|---|

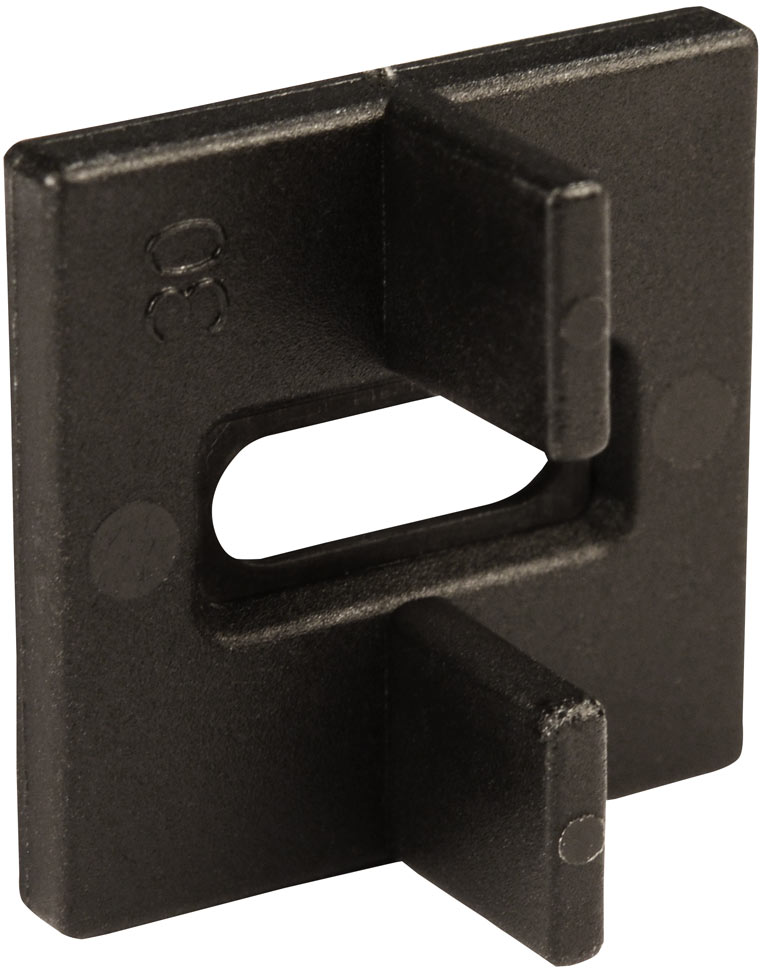

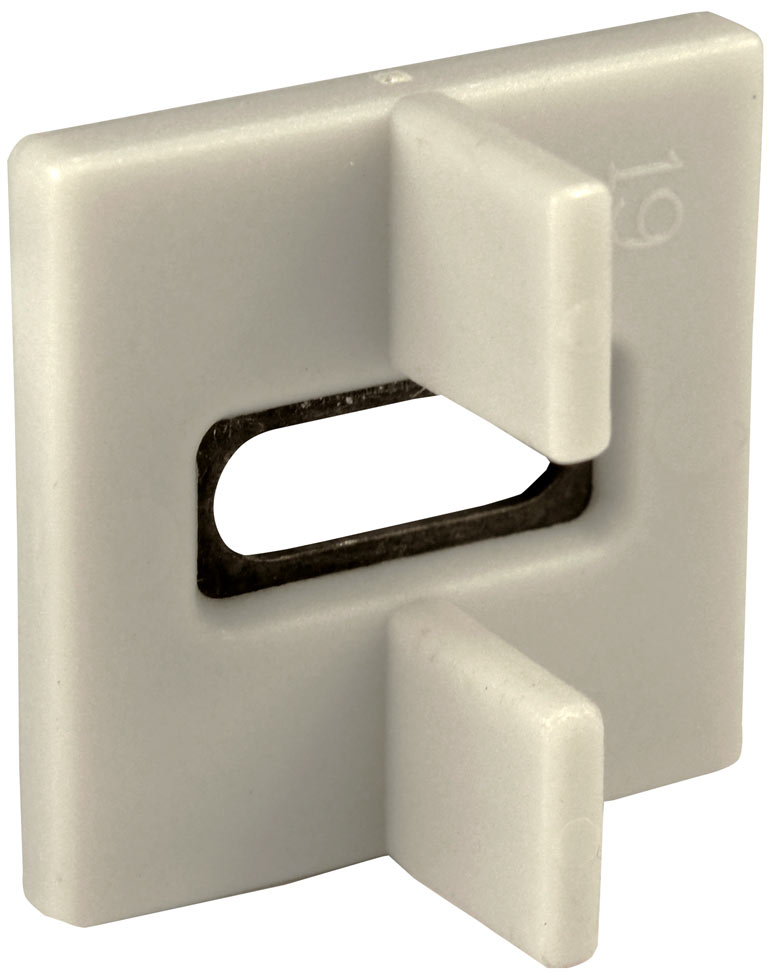

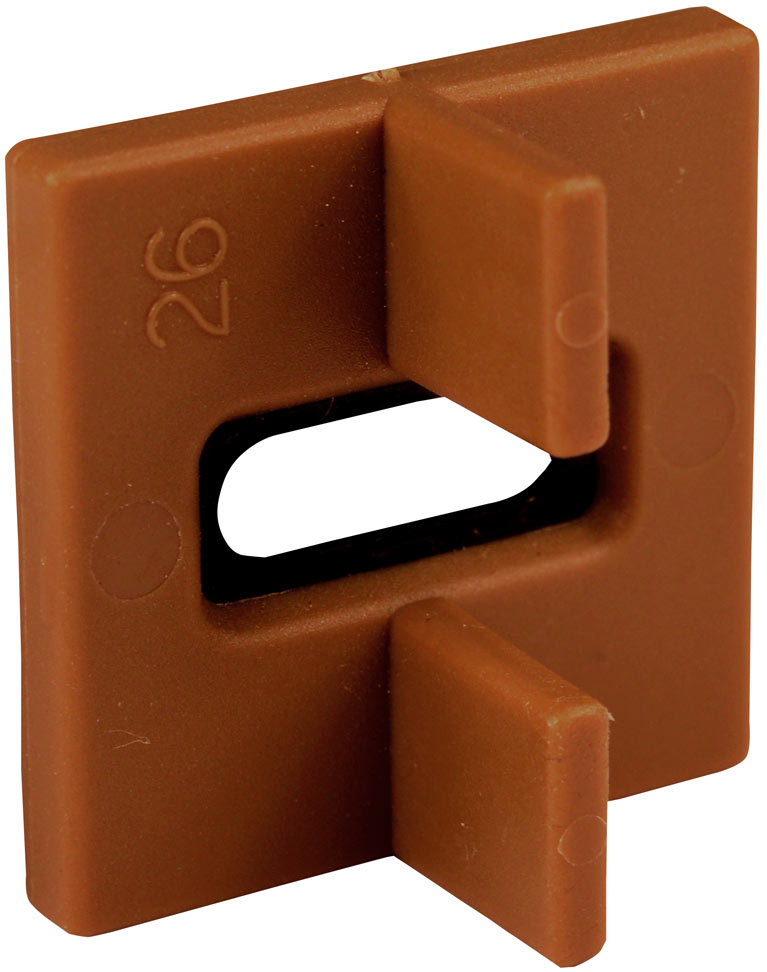

Ipe Clip® Extreme® Tall leg height = 3/8" (.375") (9,525 mm)
In order to be eligible to make a warranty claim, you must complete the registration for warranty here: www.deckwise.com/warranty/register.html

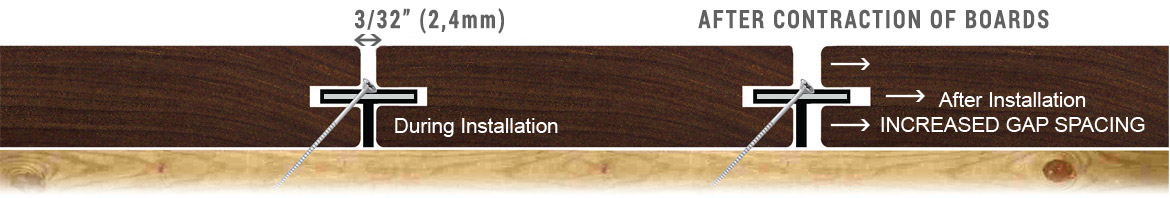

The method of 45 degree screws hold the decking tight to the joist, while allowing one side of the deck board to remain free to contract.

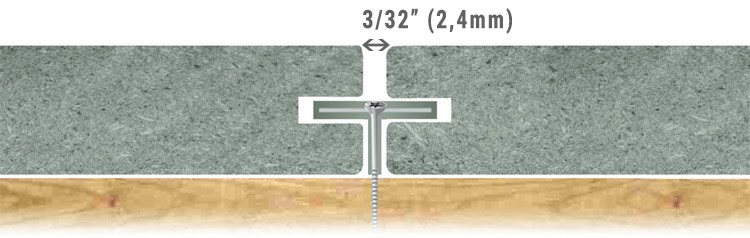

Running screws straight down with composite/PVC decking allows these materials to naturally move on their length.
| Board Thickness | Board Width |
|---|---|
| A* = Measurement Of Your Decking | B** = Measurement Of Your Decking |
| Thickness of Cut | Cutting Height | Cutting Depth |
|---|---|---|
| C = 5/32" (4mm) | D*** = (A-5/32")/2 | E = 1/2" (13mm) |
| During Installation |
|---|
| F**** = 3/32" (2,4mm) |
* If using 1-1/2" (38,1mm) or thicker material, you may need to upgrade to a longer screw option than what is typically packaged with the fastening kit.
** For decking 8" (20,32cm) or wider, the (A) dimension should be at least 1-1/2" (38,1mm). Using a wide plank such as this for surface decking will most likely cause cupping issues regardless of how the material is fastened if thicker material is not used.
*** This formula will create a symmetrical profile that allows you to flip and/or rotate the decking to be able to put the best side up.
**** Fastener automatically achieves correct gap spacing when boards are pushed tight during installation.
Deck Fastener Ipe Clip® Kits may be ordered in differences of 100 count (50 sq. ft.) components and 175 Complete Kit sizes (100 sq. ft.). All deck building screws may also be special ordered with diverse screw lengths, color and style.
EXTREME® Ipe Clip® Series - U.S. Patent Numbers 8,464,488 and 8,806,829.
Original, “round”, STANDARD Ipe Clip® - U.S. Patent No. D470,039.
EXTREMEKD® and EXTREME4® Licensed under U.S. Patent Nos. 7,874,113 and 8,161,702 Patent.
